JackJaw® SC0500 Conversion Assembly U-Channel Post Puller 1/8" - 3/4"

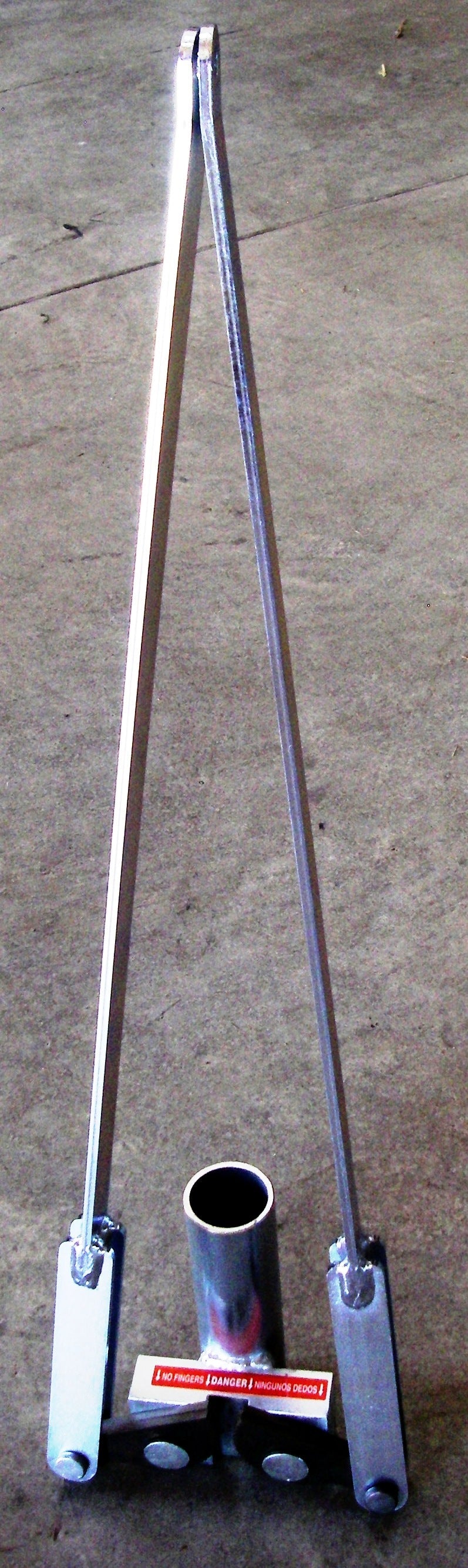

The JackJaw^®SC0500 Conversion Assembly for U-Channel Post Puller is used to convert any JackJaw 5XX Post Puller to a JackJaw 500 (JJ0500) that pulls U-Channel posts.  The kit comes complete with the slide block, link arms and jaw assembly.

With the kit installed the unit is transformed into a JJ0500 and is the fast, easy and safe way to extract U-Channel posts - (1/8” - 3/4”). More information below.

Product Demo - Video

Operating Instruction - Video

Operating Instructions - PDF

Product Line Brochure - PDF

--

Conversion Kit to U-Channel Post Puller - 1/8" to 3/4"

The JackJaw^® SC0500 U-Channel Conversion Kit is is used to convert any JackJaw 5XX Sign Post Puller to a JackJaw 500 (JJ0500) that pulls U-Channel Posts.  The kit comes complete with the slide block, link arms and jaw assembly.

With the kit installed the unit is transformed into a JJ0500 the fast, easy and safe way to extract u-channel posts - (1/8” - 3/4”).

Protect Your Investments - People, Posts and Equipment

This u-channel puller extracts posts straight out of any surface. The JackJaw^® 500 u-channel puller is a rugged all steel puller that weighs only 33 pounds.  In addition, its patented jaw mechanism provides a positive grip that prevents back and shoulder strain of operators that results from the whiplash of other pullers.  Because it helps eliminate back injuries, the JackJaw^® post puller may also help you lower your worker's compensation EMR.  In addition, you no longer need an expensive bobcat and 3 guys or a heavy cumbersome hydraulic system to pull sign posts.  One guy can do the job!

The sturdy lever arm gives you a 16 to 1 mechanical advantage.  A 100lb down force on the handle generates a 1600lb upward force and a 3200lb gripping force on the post.  Tilted posts?  No problem!  Just lean the JackJaw^® U-Channel puller to align with the post.

Post width / Grip Width is 1/8" to 3/4"

Made to Last!

JackJaw^® U-Channel pullers are produced in Dayton, Ohio from heavy gauge steel plate, and tubing to withstand everyday job site use.  JackJaw^® units have a zinc and clear chromate plating for long lasting durability and corrosion resistance.  The easily replaceable jaws (CA0006 jaw kit) are case hardened AR400 steel for long wear.  Also, the jaws can be easily replaced in the field.  Order item CA0006 jaw kit when needed.

Made in the U.S.A.

Item # SC0500

Weight 8.00 lbs
